Diamond Switchboard Matting

Diamond Switchboard Matting #1Diamond Switchboard Matting #2Diamond Switchboard Matting #3
Price: Select Option
Made in the USAAnti-SlipAnti-Static

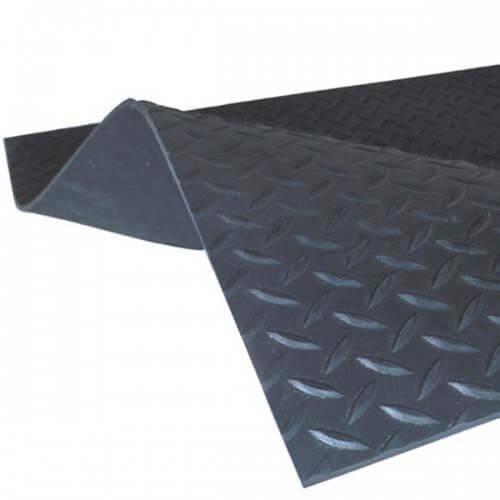

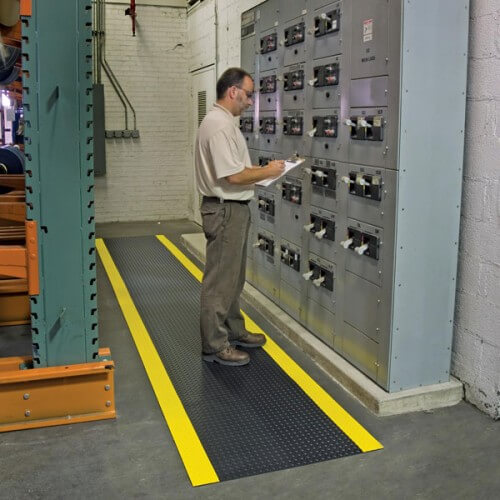

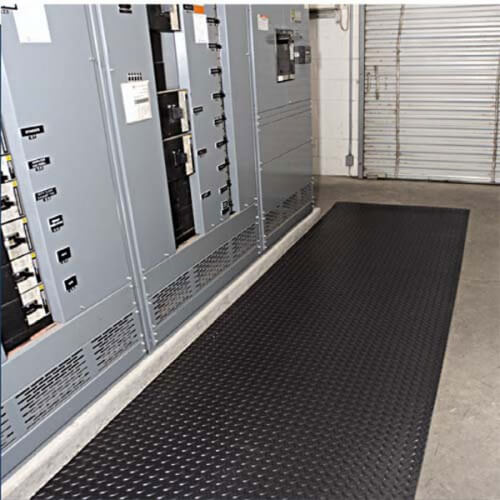

Notrax's #831 3/16" Diamond Switchboard Matting is a non-conductive floor mat made from a PVC compound, designed to provide insulation for the worker. The mat prevents the worker from being grounded, thereby eliminating the possibility of electrical shock. The diamond plate top surface provides increased traction and is easy to sweep clean. Switchboard Matting can be used in dry environments in front of high voltage boxes, electrical fuse boxes and transformers. It is highly recommended that the matting be replaced every 12 months for optimum performance. Production time: 2 to 3 weeks.

Size Disclaimer: Please be advised that mat sizes are not exact measurement. Please allow a 3% - 5% variance in all finished mat sizes (tend to shrink) due to materials and manufacturing processes.

Thickness "Dimensions 'Mat ColorPrice/ea.Weight (Lbs)
3/16"2' x 75' RollBlack$1,251.56240
3/16"3' x 75' RollBlack$1,609.66360
3/16"4' x 75' RollBlack$3,097.81480
3/16"3' x 75' RollBlack/Yellow$1,923.85360



Custom Sizes and Runners Available - Up to 60' in length in 3' width. For pricing and ordering information email or call us.


1. Outstanding Anti-Fatigue qualities.
2. UV Stable.
3. Solid Nitrile Rubber top surface for excellent chemical resistance.
4. Textured Nitrile Rubber surface for superior slip resistance.
5. Welding Safe.
6. Closed-cell Nitrile/PVC cushion backing provides long lasting comfort.
7. 100% Nitrile Rubber border remains flexible for the life of the mat and will not crack or curl.
8. Closed-cell cushion backing is permanently molded to the Nitrile Rubber surface, providing a comfortable long lasting mat.
9. Hog Heaven is available in 2 thicknesses, 5/8" and 7/8".
10. Available in Black and OSHA approved striped borders. Colors: Yellow, Red, Green and Orange.
11. Certified slip-resistant by the National Floor Safety Institute.
12. Recommended for use work stations, assembly lines, shipping lines and other areas where workers stand for extended periods.


Rubber Type: 100% Nitrile Rubber (15% Recycled Content).
Thickness: .628" or .875"
Available Colors:
Durometer: 65 TENSILE: 1100 PSI CUSHION RUBBER TYPE: Nitrile/PVC THICKNESS: .5" or .75" DENSITY: 5.5 to 7.5 lb/ft3 WATER ABSORPTION: ASTM D 1667- .01 lb/sq ft maximum FLAMMABILITY: FMVSS302- 0 Burn (pass) TEMPERATURE USE: ASTM D 1056- Cold Crack: -20 degrees F High: 200 Degrees intermittent exposure TESTING Passes Flammability Standard DOC-FF-1-70 Passes ATTCC Test method 134-1996 Electrostatic Propensity of Carpets: Maximum Voltage Negative 0.7 KV Static Decay Test Method 4046 Federal Standard 101B/NFPA 99 12- (f)(3)(i) - Maximum Time Recorded: .91 sec. Anti-Static: ANSI/ESD 57-1 1994 Protection of Electrostatic Discharge of Susceptible Items: Flooring Materials Surface to Ground - 2.1 x 10^7 ohms @ 50% Relative Humidity Surface to Ground - 3.2 x 10^7 ohms @ 12% Relative Humidity Surface to Surface - 8.2 x 10^5 ohms @ 50% Relative Humidity Surface to Surface - 8.5 x 10^5 ohms @ 12% Relative Humidity ASTM C1028-96 Static Coefficient of Friction: Dry - .92 Wet = .86
